제품 상세정보
Place of Origin: Guangdong, Huizhou
브랜드 이름: LINK-PP
인증: SFP+ MSA, REACH, RoHS, FCC
Model Number: LS‑BL332710‑60C
지불과 운송 용어
Minimum Order Quantity: 1
가격: $ 10
Packaging Details: Foam + Carton
Delivery Time: 1-3days
Payment Terms: T/T, L/C, CAD / D/P, OA
Supply Ability: 1300 in Stock
부품 번호: |
LS‑BL332710‑60C |
일반온도범위: |
0 ~ 70 ° C (32 ~ 158 ° F) |
끼워 넣을 수 있어서 뜨거워지세요: |
예 |
프로토콜: |
SFP+ MSA, SFF-8431, SFF-8472, CPRI |
디지털 진단 모니터링: |
예 |
호환 브랜드: |
시스코 |
거리: |
60km 이하 |
폼 팩터: |
SFP+ |
유형: |
비디 |
데이터 속도: |
10g |
커넥터: |
Simplex LC |
파장: |
1330nm TX / 1270nm RX |
부품 번호: |
LS‑BL332710‑60C |
일반온도범위: |
0 ~ 70 ° C (32 ~ 158 ° F) |
끼워 넣을 수 있어서 뜨거워지세요: |
예 |
프로토콜: |
SFP+ MSA, SFF-8431, SFF-8472, CPRI |
디지털 진단 모니터링: |
예 |
호환 브랜드: |
시스코 |
거리: |
60km 이하 |
폼 팩터: |
SFP+ |
유형: |
비디 |
데이터 속도: |
10g |
커넥터: |
Simplex LC |
파장: |
1330nm TX / 1270nm RX |

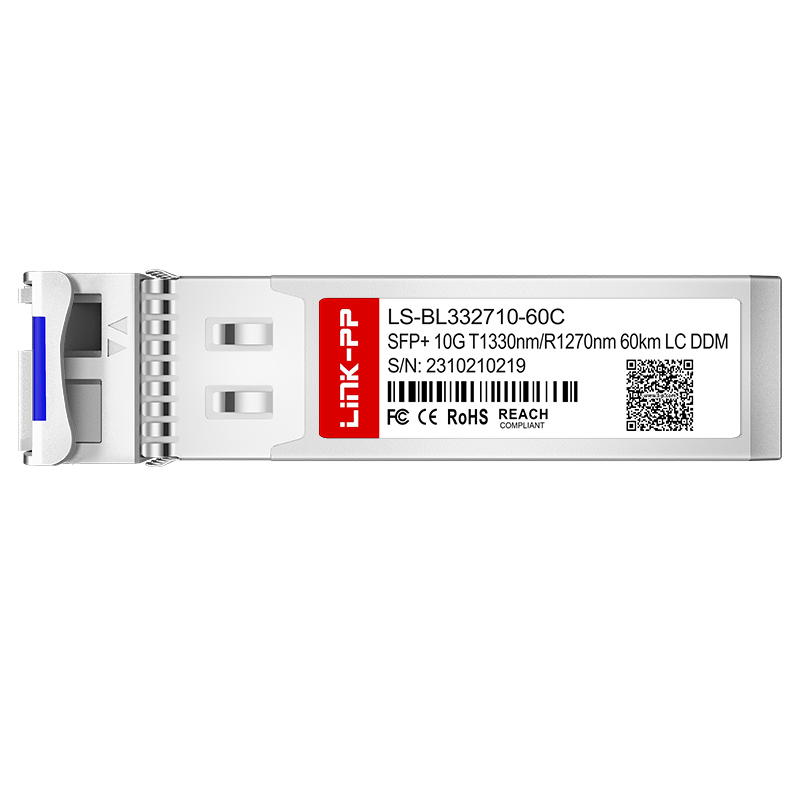

The LS-BL332710-60C, manufactured by LINK-PP, is a high-performance and cost-effective bidirectional (BiDi) SFP+ optical transceiver module. It is engineered to support data transmission speeds of up to 10 Gbps over single-mode fiber (SMF), with a maximum reach distance of 60 kilometers.
This transceiver module adheres to the 10GBASE-BX60-D standard, using 1330 nm for transmission (TX) and 1270 nm for reception (RX). It features a simplex LC connector to ensure reliable optical connectivity.
Additionally, the LS-BL332710-60C supports digital optical monitoring (DOM), enabling real-time diagnostics and performance monitoring. It is fully compliant with the SFP+ Multi-Source Agreement (MSA) and the SFF-8472 standards, ensuring compatibility and interoperability within various network systems.
| Compatible Part Number | Corresponding Brand |
|---|---|
| SFP-10G-BX60D | Cisco |
| SFP-10G32-BX60 | FS |
| 10G-SFPP-BXD-60K | Brocade |
| GP-SFP-10GBX-D-60 | |
| 10GB-BX60-D | Extreme |
| SFP-10G-BXD6 | HW |
| EX-SFP-10GE-BX32-60 | Juniper |
Q1: What are the core optical performance parameters of the LS-BL332710-60C, and what fiber type does it require?
A1: Core optical parameters: Transmitter (TX) center wavelength 1320~1340nm (typical 1330nm) with output power +1~+6dBm; Receiver (RX) center wavelength 1260~1280nm (typical 1270nm) with receiver sensitivity ≤-20dBm (BER ≤1×10⁻¹²) and overload ≥-6dBm. As a bidirectional (BiDi) module, it must be used with single-mode fiber (SMF) to achieve 60km transmission.
Q2: What information can the Digital Optical Monitoring (DOM) function of the 10Gbe SFP+ Transceiver provide, and how is it accessed?
A2: DOM supports real-time monitoring of temperature, voltage, TX bias current, and TX/RX optical power, complying with the SFF-8472 standard. Data can be accessed via the host device management interface (CLI/web) or professional testing equipment.
Q3: What certifications does the LINK-PP LS-BL332710-60C transceiver have?
A3: It has SFP+ MSA, REACH, RoHS, and FCC certifications.
Q4: What is the minimum order quantity and price for this transceiver?
A4: The minimum order quantity is 1 unit, and the price is $10 per unit.
Q5: How is the LINK-PP LS-BL332710-60C transceiver packaged, and what is the delivery time?
A5: The transceiver is packaged with foam and carton, and the delivery time is between 1 to 3 days.
Q6: What payment terms are accepted for purchasing this transceiver?
A6: Accepted payment terms include T/T, L/C, CAD / D/P, and OA.
Q7: What precautions should be taken during the installation and use of the LS-BL332710-60C SFP+ Modules?
A7: Key precautions include:
