제품 상세정보
원래 장소: 광둥, 중국
브랜드 이름: LINK-PP
인증: UL, Reach, RoHs, ISO19001, ISO14001
모델 번호: 1-1840744-3
지불과 운송 용어
최소 주문 수량: 50개
가격: $0.6-$1.9
포장 세부 사항: 50 pcs/tray,1200pcs/carton
배달 시간: 1 일, 오늘 배송
지불 조건: TT,NET30/60/90 일
공급 능력: 4200K-PCS/Month
제품 종류: |
ICM (통합 커넥터 모듈) |
통합 자기학: |
그래요 |
속도: |
기가비트 이더넷 |
AutoMDIX: |
그래요 |
장착형: |
구멍을 통해 |
배향: |
90° 각도(오른쪽) |
래치: |
위로 라벨을 다세요 |
종결: |
땜납 |
제품 종류: |
ICM (통합 커넥터 모듈) |
통합 자기학: |
그래요 |
속도: |
기가비트 이더넷 |
AutoMDIX: |
그래요 |
장착형: |
구멍을 통해 |
배향: |
90° 각도(오른쪽) |
래치: |
위로 라벨을 다세요 |
종결: |
땜납 |

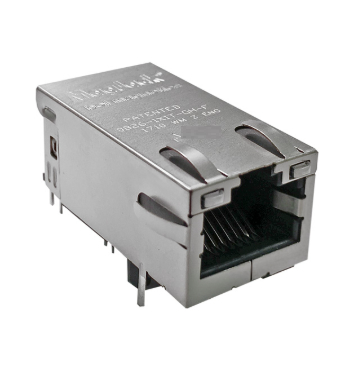

The 1-1840744-3 is a high-performance Integrated Connector Module (ICM) designed for robust Ethernet connectivity. By integrating magnetics directly into the RJ45 interface, this compact module ensures superior signal integrity, EMI/RFI suppression, and space efficiency, making it ideal for next-generation networking and industrial systems.
★ Integrated Magnetics
Combines the RJ45 jack with internal magnetic components including isolation transformers and common mode chokes. This integration enhances signal performance, minimizes noise, and ensures stable data transmission in high-speed Ethernet environments.
★ EMI/RFI Shielding
Provides advanced shielding to suppress electromagnetic and radio-frequency interference, critical for meeting strict EMC (Electromagnetic Compatibility) standards.
★ Space-Saving Design
The all-in-one form factor helps conserve valuable PCB real estate, supporting the ongoing trend toward compact and high-density electronic devices.
★ High-Speed Ethernet Support
Compatible with 10/100BASE-T, 1000BASE-T (Gigabit Ethernet). Ethernet standards.
★ Wide Operating Temperature
With an extended temperature range of -40°C to +85°C, this module is suitable for both commercial and industrial-grade environments.
★ RoHS Compliant
Environmentally conscious design that meets RoHS directives, ensuring the product is free of hazardous substances.
| Parameter | Specification |
|---|---|
| Product Series | RJ45 MagJack |
| Part Number | 1-1840744-3 |
| Port Configuration | 1x1 (Single Port) |
| Mounting Type | Through-Hole (THT) |
| Orientation | 90° Right Angle |
| Termination | Solder |
| Shielding | Full EMI/RFI Shielded Housing |
| LED Indicators | Yes (GO/Y) |
| PoE Support | Non-PoE |
| Operating Temperature | -40°C to +85°C |
| RoHS Compliance | Yes |
| PHY Compatibility | Compatible with all major PHY interfaces |
| Footprint/Pinout | Industry Standard |
