제품 상세정보
Place of Origin: Guangdong, China
브랜드 이름: LINK-PP
인증: UL, Reach, RoHs, ISO19001, ISO14001
Model Number: 615008185221
지불과 운송 용어
Minimum Order Quantity: 10pcs
가격: $0.5-$1.2
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: About 1-2 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Part Number: |
615008185221 |
Number Of Ports: |
Single Port |
Operating Temperature: |
-40 °C up to +85 °C |
LED: |
yellow-green |
Working Voltage: |
125 V (AC) |
Withstanding Voltage: |
1000 V (AC) |
Contact Resistance: |
30 mΩ |
Insulation Resistance: |
1000 MΩ |
Part Number: |
615008185221 |
Number Of Ports: |
Single Port |
Operating Temperature: |
-40 °C up to +85 °C |
LED: |
yellow-green |
Working Voltage: |
125 V (AC) |
Withstanding Voltage: |
1000 V (AC) |
Contact Resistance: |
30 mΩ |
Insulation Resistance: |
1000 MΩ |

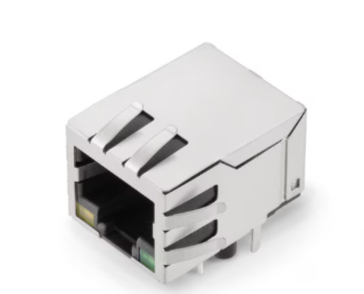

The 615008185221 is a shielded, right-angle, through-hole mount RJ45 Jack with 8P8C (8 positions, 8 contacts) configuration. This component is designed for use in general electronic equipment and is categorized as a CAT3 LAN connector.
|
Category
|
Parameter
|
Value
|
|---|---|---|
|
General Properties
|
Description
|
Modular Jack Horizontal Shielded w. LED and EMI Panel Finger 8P8C Tab Down
|
|
|
Part Number
|
615008185221
|
|
|
Series
|
Modular Jack
|
|
|
Type
|
Modular Jack / RJ45
|
|
|
Pin Configuration
|
8P8C (8 Positions, 8 Contacts)
|
|
|
LAN Category
|
Cat3
|
|
Physical Properties
|
Mounting Type
|
Through-Hole
|
|
|
Orientation
|
Right Angle
|
|
|
LED Indicators
|
Yes (Left: Green, Right: Yellow)
|
|
|
Shielding
|
Shielded (Brass, Nickel Plated)
|
| Length | 21.50mm | |
| Width | 15.80mm | |
| Height | 13.60mm | |
|
|
Insulator Material
|
PBT, Black
|
|
|
Contact Material
|
Copper Alloy, Selective Gold Plating
|
|
|
Mating Cycles
|
750 Cycles
|
|
Electrical Properties
|
Current Rating
|
1.5 A
|
|
|
Voltage Rating
|
125 V (AC)
|
|
|
Dielectric Withstanding Voltage
|
1000 V (AC) / 60s
|
|
|
Contact Resistance
|
20 mΩ Max
|
|
|
Insulation Resistance
|
1000 MΩ Min
|
|
Environmental & Safety
|
Operating Temperature Range
|
-40°C to +85°C
|
|
|
Flammability Rating
|
UL94 V-0
|
|
|
Certifications
|
RoHS, REACH
|
|
Soldering Information
|
Solder Process
|
Wave Soldering
|
