Name: LPJK7436A98NL Low-Profile RJ45 Connector with 1000Base-T Magnetics
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: LPJK7436A98NL
Price: 1.06 USD
Availability: InStock

제품 상세정보

Place of Origin: Guangdong,China

브랜드 이름: LINK-PP

인증: UL,RoHS,Reach,ISO

모델 번호: LPJK7436A98NL

지불과 운송 용어

Minimum Order Quantity: 400/2000/10K/25K

가격: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

최상의 가격을 얻으세요

제품 상세정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                                                                    LPJK7436A98NL, 1×1 RJ45 Connector, RJ45 Connector with with Integrated Magnetics


부품 번호:	LPJK7436A98NL	커넥터 유형:	통합된 자기학과 알제이 사십오 잭
호환 브랜드:	워스	포트 수:	1X1
걸쇠:	위로	데이터 속도:	1000base-t
포:	비	LED 옵션:	와 함께
EMl 탭:	와 함께	장착 유형:	tht
솔더 유형:	파도	작동 온도 범위:	-40 ° C ~ +85 ° C

부품 번호:	LPJK7436A98NL
커넥터 유형:	통합된 자기학과 알제이 사십오 잭
호환 브랜드:	워스
포트 수:	1X1
걸쇠:	위로
데이터 속도:	1000base-t
포:	비
LED 옵션:	와 함께
EMl 탭:	와 함께
장착 유형:	tht
솔더 유형:	파도
작동 온도 범위:	-40 ° C ~ +85 ° C

LPJK7436A98NL Low-Profile RJ45 Connector with 1000Base-T Magnetics

Key Features:

Single-port 1×1 RJ45 jack supporting 10 / 100 / 1000Base-T Ethernet (Gigabit) speeds.
Low-profile form-factor: package height approx 11.30 mm.
Through-hole (THT) mounting side-entry (“Tab Up” latch orientation) configuration.
Built-in LED indicators: Orange & Green / Yellow option.
Integrated magnetics: 1CT:1CT turns ratio (primary: secondary) for TX/RX channel sets.
Shielded connector with EMI tabs.
Compliance: IEEE 802.3 (Ethernet) standard, RoHS, REACH, UL certifications.
Operating temperature range: –40 °C to +85 °C for many listings (note: confirm with datasheet for your variant)

Specifications:

Category	Parameter	Value
General Information	Part Number	LPJK7436A98NL
	Manufacturer	LINK-PP INT'L TECHNOLOGY CO., LTD
	Product Type	RJ45 Connector with Integrated Magnetics
	Profile	Low-Profile, Side Entry
Electrical Characteristics	Data Rate	10/100/1000 Mbps
	Turns Ratio (TX/RX)	1CT : 1CT
	Hi-Pot Voltage	1500 Vrms
	Insertion Loss	≤ 1.0 dB (1-100 MHz)
	Return Loss	≥ 16 dB (1-40 MHz)
	Crosstalk	≥ 30 dB (1-100 MHz)
Mechanical Data	Mounting Type	Through-Hole (THT), 90° Angle
	Orientation	Tab Up
	Height	11.30 mm
	Shield Type	Full Metal Shield with EMI Tabs
Material & Finish	Housing	PBT + 30% GF, UL94V-0
	Contact	Phosphor Bronze, Gold Plated (6 µin min)
	Shield	SUS 304 Stainless Steel
Environmental	Operating Temp	–40 °C to +85 °C
	Storage Temp	–40 °C to +85 °C
	RoHS / REACH	Compliant
Compliance & Safety	Ethernet Standard	IEEE 802.3 (10/100/1000Base-T)
	UL Certification	E484635
Typical Applications		Compact Routers, IP Cameras, Network Modules, IoT Devices

Applications:

Space-constrained network equipment such as smart cameras, embedded modules, compact routers, and consumer/industrial networking devices.
Devices requiring full Gigabit Ethernet connectivity in low-profile PCB layouts.
Networking products where integrated magnetics simplify board design and EMI/EMC performance.

RJ45 Connector with Integrated Magnetics Details:

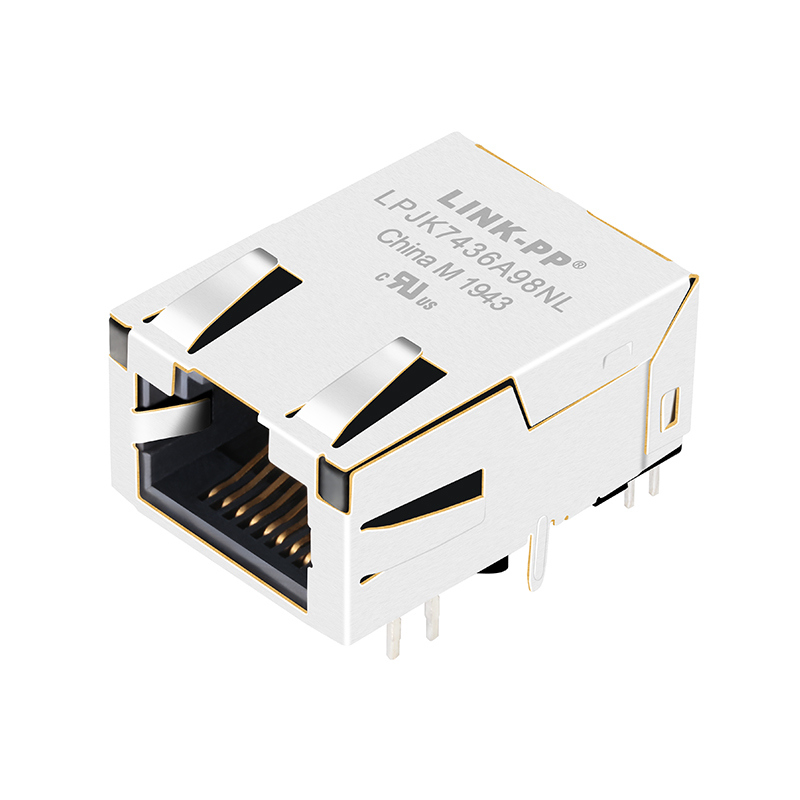

LPJK7436A98NL Low-Profile RJ45 Connector with 1000Base-T Magnetics 0

LPJK7436A98NL Low-Profile RJ45 Connector with 1000Base-T Magnetics 1

LPJK7436A98NL Low-Profile RJ45 Connector with 1000Base-T Magnetics 2

Design & Layout Considerations:

Use the recommended PCB footprint and retaining post layout as per manufacturer drawing (see datasheet).
Ensure side-entry orientation (Tab Up) matches your board design and mechanical constraints.
Verify that the LED orientation and colours match your system design and visual indications.
For thermal design: though rated to –40 °C to +85 °C, ensure that adjacent components and board layout do not exceed the connector’s thermal limits.
Review EMI/EMC shielding strategy: connector’s EMI tabs should be tied to board ground appropriately to ensure optimal performance.
Because of integrated magnetics, carefully consider board stackup and signal integrity around the RJ45 region (especially if high-speed or PoE is involved).
