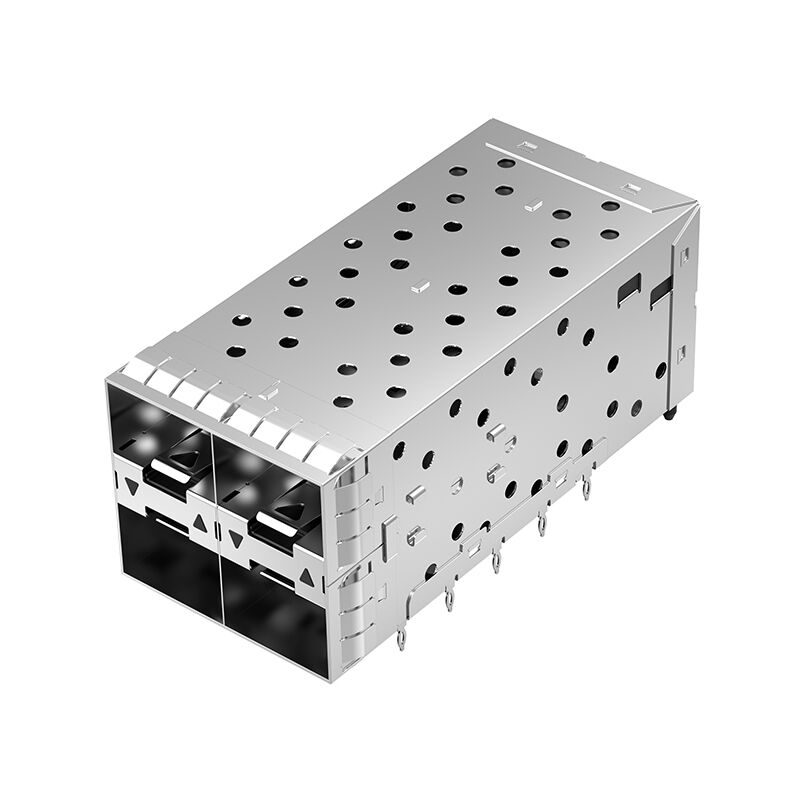

LP22BC01301 SFP+ 2x2 Cage Connector with Outer LightPipe

Name: LP22BC01301 SFP+ 2x2 Cage Connector with Outer LightPipe
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: LP22BC01301
Price: 3.12 USD
Availability: InStock

제품 상세정보

원래 장소: 중국 광동

브랜드 이름: LINK-PP

인증: UL,RoHS,Reach,ISO

모델 번호: LP22BC01301

문서: LP22BC01301.pdf

지불과 운송 용어

최소 주문 수량: 1pcs, 무료 샘플

가격: $2.12-$4.12

포장 세부 사항: 트레이 포장

배달 시간: 3~5일

지불 조건: TT, NET30/60/90 일

공급 능력: 5kk/월

최상의 가격을 얻으세요

제품 상세정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                                                                    SFP+ Cage Connector, 2x2 SFP+ Cage, SFP+ Cage Assembly


플러그형 I/O 유형:	통합 SFP+ 커넥터가 있는 케이지 어셈블리	EMI 차폐:	예
작동 온도:	-40~85°C	치수:	63.25x29.00x25.53mm
호환 브랜드:	테	유형:	SFP+
포트 수:	2xN	데이터 속도(최대)(Gb/s):	16
종료 방법:	프레스핏	광파이프:	~와 함께
방열판:	없이	EMI 억제 기능 유형:	유연성 가스켓

플러그형 I/O 유형:	통합 SFP+ 커넥터가 있는 케이지 어셈블리
EMI 차폐:	예
작동 온도:	-40~85°C
치수:	63.25x29.00x25.53mm
호환 브랜드:	테
유형:	SFP+
포트 수:	2xN
데이터 속도(최대)(Gb/s):	16
종료 방법:	프레스핏
광파이프:	~와 함께
방열판:	없이
EMI 억제 기능 유형:	유연성 가스켓

LP22BC01301 SFP+ 2x2 Cage Connector with Outer LightPipe

LINK-PP LP22BC01301 SFP+ 2x2 Cage Connector with outer lightpipe. Press-fit, right-angle, 4-port, -40 to 85°C, tray packaging. Ideal for data center & networking.

High-speed signal integrity ensured via nickel-plated copper cage and gold-plated contacts
LED status visibility supported by inner/outer lightpipe
Press-fit right-angle mounting simplifies PCB assembly and reduces rework
Tray packaging ensures safe handling during mass production
Supports reliable operation in wide industrial temperature range (-40 to 85°C)

Product Overview

The LP22BC01301 SFP+ 2x2 Cage Connector by LINK-PP is a high-quality, pluggable I/O connector designed for high-speed networking equipment, enterprise switches, and data center applications. With a 2x2 port matrix and outer lightpipe integration, this cage ensures robust signal integrity, reliable EMI containment, and secure SFP+ module mating.

Engineered for PCB designers, network engineers, and OEM procurement teams, it offers press-fit through-hole mounting, compliance with high-temperature requirements, and tray packaging for easy assembly.

Key Features

Pluggable I/O Type: Cage assembly with integrated SFP+ connector
Port Configuration: 2x2 matrix, 4 ports
Positions: Standard SFP+ 80 positions
Lightpipe: Outer and inner lightpipe included for LED indicators
EMI Containment: Cage design provides EMI shielding
Sealable: Not specified (typical SFP+ cage assembly protection)
Data Rate: Supports SFP+ speeds up to 10-16 Gb/s
Operating Temperature: -40 - 85°C
PCB Mounting: Through-hole, press-fit, right-angle
Housing Material: High-temperature LCP, UL94 V-0
Cage Material: Copper alloy, Ni-plated, 0.25 mm thickness
Contacts: Phosphor bronze, 0.20 mm thickness, 15 µm gold plating on mating area
Spring: Stainless steel, 0.20 mm thickness
Dimensions:
- Height: 25.53 mm / 1.005 in
- Length: 63.25 mm / 2.490 in
- Width: 29.00 mm / 1.142 in

Material & Electrical Specifications

Parameter	Specification
Contact Material	Phosphor bronze, 0.20 mm thick
Mating Area Plating	15 µm gold minimum
Tail Plating	Mate tin on solder tails
Spring Material	Stainless steel, 0.20 mm thick
Data Rate	Up to 16 Gb/s
Contact Current Rating	0.5 A
PCB Mounting	Through-hole, press-fit

Recommended PCB Layout

Mechanical & Configuration Details

Cage Type: 2x2 stacked SFP+
Form Factor: SFP+ standard
Lightpipe Style: Inner & outer, clear polycarbonate
Mounting Type: Right-angle, through-hole
Cage Material: Copper alloy, nickel-plated
PCB Thickness Recommended: 1.5 mm
Heat Sink Compatible: Not specified

Applications

10G SFP+ Transceivers
Enterprise and Carrier Ethernet Switches
Servers and Storage Equipment
High-speed Data Communication Networks

Frequently Asked Questions

Q1: Can this cage assembly support SFP28 25Gb/s modules?

A: This model is optimized for SFP+ speeds up to 16 Gb/s. Compatibility with SFP28 requires verification.

Q2: Is the lightpipe compatible with standard SFP+ LEDs?

A: Yes, the included inner and outer lightpipe supports standard LED indicators.

Q3: What is the operating temperature range?

A: The cage supports -40°C to 85°C.

Q4: Is tray packaging available for mass production?

A: Yes, LP22BC01301 is supplied in tray packaging suitable for automated assembly.
