제품 상세정보
원래 장소: 광둥성, 후이저우
브랜드 이름: LINK-PP
인증: UL,RoHS,Reach,ISO
모델 번호: 634108149621
지불과 운송 용어
최소 주문 수량: 150 개 PC
가격: $6.3
포장 세부 사항: 테이프 및 릴 및 마일라
배달 시간: 3 일 이내에 재고선
지불 조건: TT, NET30/60/90일, 서부 동맹
공급 능력: 5kk/월
부품 번호: |
634108149621 |
유형: |
WR-MJ 모듈러 잭 |
설계: |
수직 표면 실장(SMT) |
포트: |
1X1 |
신청 시스템: |
고양이 3 |
정격전류: |
1.5 A |
작동 전압: |
120V(AC) |
차폐: |
플라스틱 비차폐 |
부품 번호: |
634108149621 |
유형: |
WR-MJ 모듈러 잭 |
설계: |
수직 표면 실장(SMT) |
포트: |
1X1 |
신청 시스템: |
고양이 3 |
정격전류: |
1.5 A |
작동 전압: |
120V(AC) |
차폐: |
플라스틱 비차폐 |

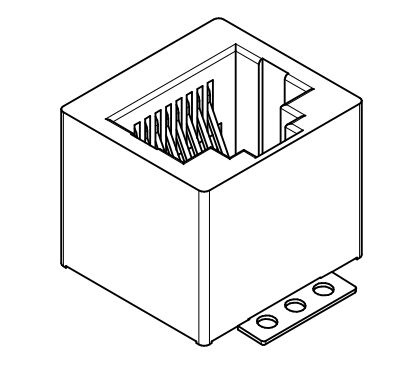

The 634108149621 WR-MJ Cat 3 Modular Jack is a single-port 8P8C vertical SMT RJ45 connector designed for reliable Ethernet connectivity in networking and embedded electronic systems.
Developed by Würth Elektronik, this modular jack belongs to the WR-MJ series and supports Category 3 Ethernet applications while maintaining compatibility with higher network categories under certain conditions.
With tape-and-reel packaging, soldering tab reinforcement, and reflow-compatible UL94-V0 housing, the connector is optimized for automated SMT assembly and stable long-term electrical performance.
It is widely used in network devices, IoT equipment, and smart building infrastructure requiring compact and reliable Ethernet interfaces.
| Parameter | Specification |
|---|---|
| Part Number | 634108149621 |
| Series | WR-MJ Modular Jack |
| Connector Type | RJ45 |
| Number of PINs | 8P8C |
| Ports | 1×1 |
| Orientation | Vertical |
| Mounting Type | SMT |
| Shielding | Plastic (Unshielded) |
| Soldering Tab | Yes |
| EMI Fingers | No |
| LED Indicator | No |
| Packaging | Tape & Reel / Mylar |
| Application System | CAT 3 Ethernet |
| Parameter | Symbol | Test Conditions | Value | Tolerance |
|---|---|---|---|---|
| Rated Current | IR | -- | 1.5 A | -- |
| Working Voltage | -- | AC | 120 V | -- |
| Withstanding Voltage | -- | 1 minute | 1000 V AC | -- |
| Contact Resistance | R | -- | ≤ 20 mΩ | Max |
| Insulation Resistance | RISO | -- | ≥ 500 MΩ | Min |
The 634108149621 Cat 3 RJ45 Modular Jack is designed to provide stable electrical performance for Ethernet and communication interfaces.
Key electrical characteristics include:
| Parameter | Specification |
|---|---|
| Insulator Material | LCP (Liquid Crystal Polymer) |
| Insulator Flammability Rating | UL94 V-0 |
| Insulator Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Selective Gold |
| Contact Type | Stamped |
The tape-and-reel packaging allows high-speed pick-and-place assembly, improving manufacturing efficiency in large-volume electronics production.
The integrated soldering tab enhances mechanical stability, ensuring secure attachment to the PCB during operation and repeated cable insertion.
The WR-MJ modular jack family offers multiple configuration options including:
This flexibility enables engineers to adapt the connector to a wide range of network device designs.
