제품 상세정보
원래 장소: 중국
브랜드 이름: LINK-PP
인증: RoHS, REACH SVHC, Low-Halogen
모델 번호: 747548101
지불과 운송 용어
최소 주문 수량: 10PCS
가격: $5.15
포장 세부 사항: 쟁반
배달 시간: 3~7일
지불 조건: 서부 동맹, T/T, D/P, D/A
공급 능력: 3kk/월
부품 번호: |
7 |
제품 유형: |
에스 |
포트 수: |
1 |
장착 유형:: |
티 |
EMI 스프링 핑거: |
여 |
라이트 파이프: |
나 |
종료: |
피 |
부품 번호: |
7 |
제품 유형: |
에스 |
포트 수: |
1 |
장착 유형:: |
티 |
EMI 스프링 핑거: |
여 |
라이트 파이프: |
나 |
종료: |
피 |

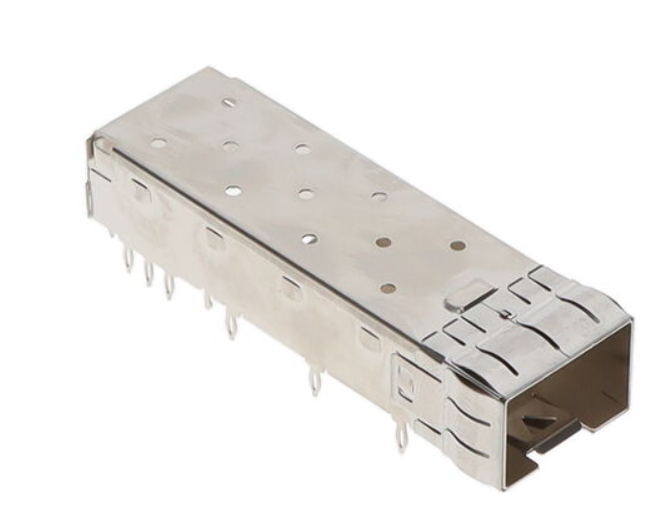

747548101 SFP+ Cage Press-Fit is a 1x1 SFP+ cage assembly with press-fit termination, SUS EMI spring fingers, nickel-plated copper alloy cage, and optional light pipe support. Designed for SFP+ transceivers and backward compatible with SFP.
The 747548101 SFP+ Cage Press-Fit is a 1x1 SFP+ cage assembly designed for high-density optical module applications. It features press-fit termination, SUS EMI spring fingers, and a nickel-plated copper alloy cage, making it a strong fit for designs that need mechanical stability, EMI suppression, and reliable transceiver integration. The drawing also states that the ports are designed for SFP+ transceivers and are backward compatible with SFP transceivers.
| Category | Specification |
|---|---|
| Part Number | 747548101 |
| Series | 74754 |
| Product Type | SFP+ Cage Assembly |
| Configuration | 1 × 1 (Single Port) |
| Connector Type | SFP+ (Backward compatible with SFP) |
| Mounting Type | Through Hole, Right Angle |
| Termination Method | Press-Fit (Compliant Pin) |
| Shielding | EMI Shielded with Spring Fingers |
| Material (Cage) | Copper Alloy, 0.25 mm thickness, Nickel Plated |
| Material (Spring Finger) | Stainless Steel |
| Port Compatibility | SFP+ and SFP Transceivers |
| Light Pipe | Optional Light Pipe Assembly Available |
| PCB Thickness Requirement | ≥ 1.57 mm (Single-sided) |
| Press-Fit Pin Length | 3.05 mm |
| Dimensions (L × W × H) | 49 × 15.12 × 10.85 mm |
| Operating Temperature Range | -40°C to +85°C (typical requirement) |
| RoHS Compliance | No Exemptions / Compliant |
| Packaging Type | Tray |
| Application | Telecom, Data Centers, Networking Equipment |
Yes. The drawing states that the ports are designed for SFP+ transceivers and are backward compatible with SFP transceivers.
Yes. It uses SUS EMI spring fingers and is identified as an EMI shielded cage assembly.
Yes. The drawing notes that an optional light pipe assembly is available.
The drawing specifies a minimum PCB thickness of 1.57 mm for single-sided use.
Looking for the 747548101 SFP+ Cage Press-Fit for your next design? Contact us for pricing, availability, and technical support, and we will help you source the right cage assembly for your application.
