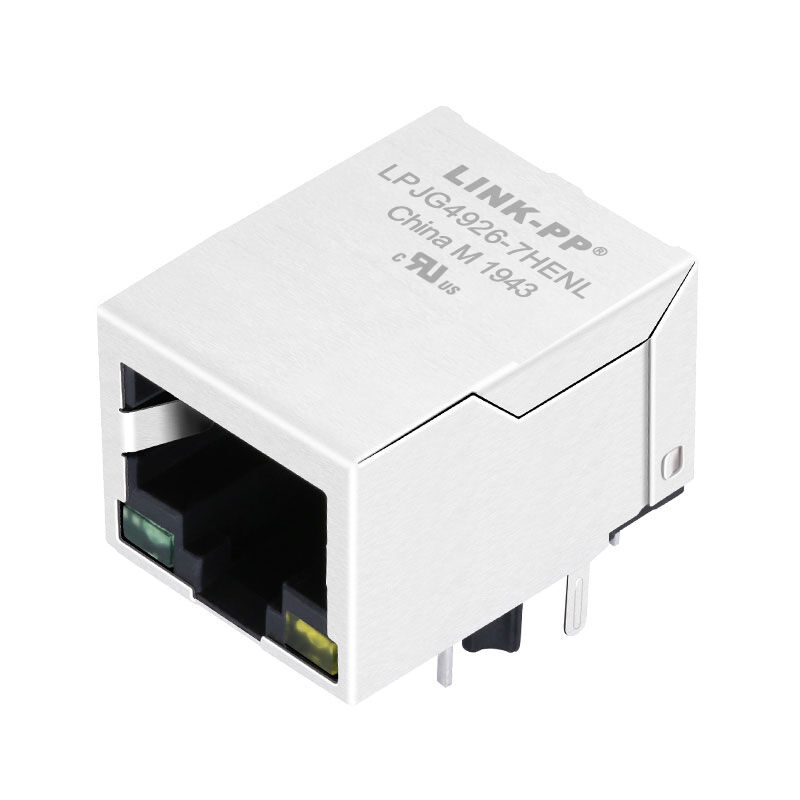

LPJG4926-7HENL PoE+ RJ45 Connector with 1000Base-T Integrated Magnetics

Name: LPJG4926-7HENL PoE+ RJ45 Connector with 1000Base-T Integrated Magnetics
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: LPJG4926-7HENL
Price: 0.70 USD
Availability: InStock

제품 상세정보

원래 장소: 중국

브랜드 이름: LINK-PP

인증: UL,ROHS,Reach,ISO

모델 번호: LPJG4926-7HENL

지불과 운송 용어

최소 주문 수량: 50/500/1000

가격: 협상 가능

포장 세부 사항: 50 pcs/tray,1200pcs/carton

배달 시간: 오늘 재고선에서

지불 조건: TT, NET30/60/90 일

공급 능력: 4600K.PCS/월

최상의 가격을 얻으세요

제품 상세정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                                                                    PoE+ RJ45 connector with integrated magnetics, 1000Base-T RJ45 connector with PoE+, LINK-PP Magjacks RJ45 connector


부품 번호:	LPJG4926-7HENL	커넥터 유형:	POE+ RJ45 커넥터
차폐:	차폐	포트 수:	1X1
걸쇠:	아래에	데이터 속도:	1000base-t
PoE:	PoE+	LED 옵션:	와 함께
EMl 탭:	없이	장착 유형:	tht
솔더 유형:	파도	작동 온도 범위:	-40°C ~ +85°C

부품 번호:	LPJG4926-7HENL
커넥터 유형:	POE+ RJ45 커넥터
차폐:	차폐
포트 수:	1X1
걸쇠:	아래에
데이터 속도:	1000base-t
PoE:	PoE+
LED 옵션:	와 함께
EMl 탭:	없이
장착 유형:	tht
솔더 유형:	파도
작동 온도 범위:	-40°C ~ +85°C

LPJG4926-7HENL PoE+ RJ45 Connector with 1000Base-T Integrated Magnetics

1×1 1000Base-T RJ45 MagJack with integrated magnetics, PoE+ (802.3at) support, link/activity LEDs, and full EMI shielding. UL-listed, -40°C to +85°C.

Product Overview

The LINK-PP LPJG4926-7HENL is a rugged single-port (1×1) RJ45 Magjack (10P8C) that integrates the magnetic transformer inside the connector. It supports Gigabit Ethernet (1000Base-T) and meets IEEE 802.3at PoE+ standards. Built to industrial specifications, it is UL-certified and RoHS/REACH-compliant, and operates over -40°C to +85°C. With built-in green/yellow link/activity LEDs and full metal shielding, this MagJack delivers stable high-speed data and power (up to 57 V, 720 mA per port) over a single cable, making it ideal for switches, routers, industrial PCs, smart meters, and other networking or PoE applications.

The LPJG4926-7HENL's integrated magnetics (transformers and chokes) improve signal integrity and suppress electromagnetic interference (EMI). Embedding the magnetics inside the jack eliminates the need for separate components, saving PCB space and improving reliability. This design yields low insertion loss and high common-mode rejection, ensuring clear Gigabit Ethernet signals even in noisy environments.

Key Features

Integrated Magnetics (MagJack): Internal Ethernet transformer and chokes provide superior EMI shielding and signal reliability. This fully integrated design simplifies board layout and reduces PCB component count.
1000Base-T Gigabit & PoE+ Support: Supports up to 1 Gbps data rates and complies with IEEE 802.3at (PoE+) for power delivery. Allows powering devices like IP cameras and VoIP phones directly over the cable (57 V, 720 mA) without external power bricks.
Link/Activity LEDs: Dual LEDs (left = green, right = yellow) indicate link status and network activity, aiding quick diagnostics and installation verification.
Full Shielding & EMI Protection: Metal housing and embedded magnetics yield enhanced EMI shielding, boosting both connection integrity and signal reliability. This makes the connector resistant to interference in industrial and telecom environments.
Industrial Durability: Through-hole (THT) mount with a down-facing latch ensures secure connections. Rated for -40°C to +85°C operation and UL File E484635 certification, it meets rigorous quality and safety standards.

Product Specifications

Feature	Specification
Part Number	LPJG4926-7HENL (LINK-PP)
Ports	1×1 (single) RJ45, 10P8C
Data Rate	1000Base-T (10/100/1000 Mbps)
Integrated Magnetics	Yes (1CT:1CT turn ratio Ethernet transformer)
PoE Support	PoE+ (IEEE 802.3at) - up to 57 V @ 720 mA per port
LED Indicators	Left: Green (link), Right: Yellow (activity)
Shielding	Fully shielded connector (no external EMI tabs)
Mounting	Through-hole (THT), PCB latch-down orientation
Latch Direction	Down (angled right orientation)
Housing Material	Thermoplastic PBT+30%GF, UL94V-0
Contact Material	Phosphor bronze, gold-plated mating area
Operating Temperature	-40°C to +85°C (industrial range)
Compliance/Certifications	IEEE 802.3at, UL (File E484635), RoHS, REACH, ISO

Electrical Specifications

Item	Specification
Turn Ratio	Pri:Sec = 1CT:1CT ±5%
OCL	350 uH min @ 100KHz/0.1V, 8mA DC bias
OCL	120 uH min @ 100KHz/0.1V, 18mA DC bias
Insertion Loss	-1.0 dB max @ 1-100MHz
Insertion Loss	-1.2 dB max @ 100-125MHz
Return Loss	-16 dB min @ 1-40MHz
Return Loss	-12 dB min @ 40-60MHz
Return Loss	-10 dB min @ 60-80MHz
Return Loss	-8 dB min @ 80-100MHz
Cross Talk	-30 dB min @ 1-100MHz
Common-to-Common Mode Rejection	-30 dB min @ 1-100MHz
DC Current / Voltage Rating on PSE Pins	720mA max @ 57VDC continuous
Isolation PHY Side to Line Side	1500Vrms
Operating Temperature	-40°C to +85°C

By combining Gigabit speed, PoE+ power, and magnetics in one module, the LPJG4926-7HENL provides a turnkey RJ45 solution that enhances signal quality and simplifies Ethernet designs. Its industrial-grade build with LEDs and wide-temperature support delivers reliable performance for high-speed networking and power-over-Ethernet applications.

Product Datasheet

Mechanical and Material Information

The LPJG4926-7HENL is built with durable materials and production details that support dependable use in Ethernet hardware:

Housing: Thermoplastic PBT + 30% G.F, UL94V-0
Contact Material: Phosphor Bronze C5210R-EH, thickness 0.35mm
Pins: Brass C2680R-H, thickness 0.35mm
Shield: SUS 201-1/2H, thickness 0.2mm
Contact Plating: Gold 15 micro-inches minimum in contact area
Insertion Cycles: 750 minimum, more than 5000 maximum
Wave Solder Tip Temperature: 250°C for 5 seconds
UL Certification: File Number E484635

Frequently Asked Questions

The LPJG4926-7HENL RJ45 Connector with Integrated Magnetics is a dependable choice for engineers and manufacturers who need a compact, shielded, and high-performance 1000Base-T PoE+ MagJack. With strong electrical performance, durable construction, and broad application support, it is well suited for modern Ethernet product designs.

1. What is an RJ45 connector with integrated magnetics?

An RJ45 connector with integrated magnetics combines the Ethernet jack and the magnetic components into one part. This design helps simplify PCB layout, reduce component count, and improve assembly efficiency.

2. Is the LPJG4926-7HENL suitable for PoE+ applications?

Yes. The LPJG4926-7HENL is designed for PoE+ and supports IEEE 802.3at requirements.

3. What is the LPJG4926-7HENL used for?

It is used in 1000Base-T Ethernet equipment that requires an RJ45 connector with integrated magnetics, especially in PoE+ applications.

4. Does this connector support 1000Base-T?

Yes. The LPJG4926-7HENL is a 1000Base-T RJ45 connector with integrated magnetics.

5. Is this connector shielded?

Yes, it is a shielded RJ45 MagJack design.

6. What mounting method does it use?

It uses through-hole (THT) mounting and supports wave solder assembly.
