제품 상세정보
원래 장소: 중국
브랜드 이름: LINK-PP
인증: UL,RoHS,Reach,ISO
모델 번호: HX5084NLT
지불과 운송 용어
최소 주문 수량: 10개
가격: $0.57
포장 세부 사항: 테이프 & 릴
배달 시간: 3 일 이내에 재고선
지불 조건: L/C,D/A,D/P,T/T,웨스턴 유니온
공급 능력: 5kk/월
부품번호: |
HX5084NLT |
네트워크 속도: |
10/100/1000Base-T(기가비트 이더넷) |
포트 구성: |
단일 포트(1x1) |
작동 온도: |
−40°C ~ +85°C(산업 등급) |
장착 유형: |
표면 실장 장치(SMD) |
개방 회로 인덕턴스(OCL): |
최소 350μH |
절연 전압: |
최소 1500VRMS |
네트워크 표준: |
IEEE 802.3 사양 |
부품번호: |
HX5084NLT |
네트워크 속도: |
10/100/1000Base-T(기가비트 이더넷) |
포트 구성: |
단일 포트(1x1) |
작동 온도: |
−40°C ~ +85°C(산업 등급) |
장착 유형: |
표면 실장 장치(SMD) |
개방 회로 인덕턴스(OCL): |
최소 350μH |
절연 전압: |
최소 1500VRMS |
네트워크 표준: |
IEEE 802.3 사양 |

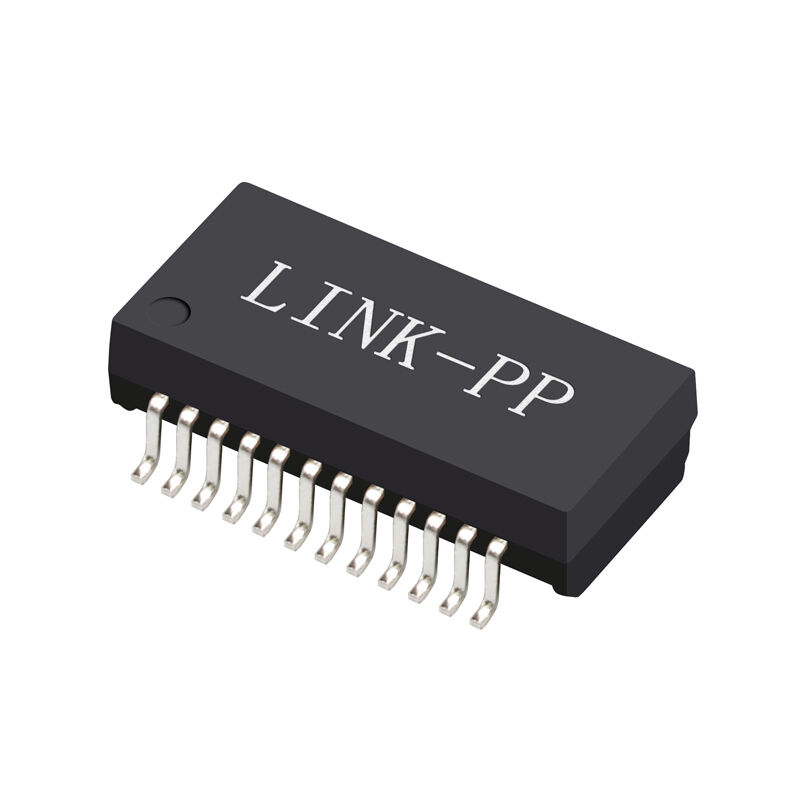

HX5084NLT is a single-port industrial-grade 1000Base-T LAN transformer with 1:1 turns ratio, wide temperature range, and IEEE 802.3 compliance for robust Ethernet designs.
The HX5084NLT is an industry-standard, high-reliability Single-Port Gigabit Ethernet (1000Base-T) LAN Transformer designed for surface mount (SMD/SMT) applications. Engineered to withstand harsh environments, it features an industrial operating temperature range of −40°C to +85°C.
Fully compliant with IEEE 802.3 specifications, this 1:1 ratio magnetic module is a proven solution for ensuring robust signal integrity and superior electrical isolation. It is widely adopted by engineers for use in industrial control systems, enterprise routers, network switches, and telecommunication motherboards subjected to extreme temperatures.
The following electrical characteristics apply at +25°C unless otherwise specified.
| Parameter | Specification |
|---|---|
| Operating Temperature | −40°C to +85°C |
| Turns Ratio | 1:1 ±2% |
| Polarity | Per schematic |
| Insertion Loss | 100 kHz: −1.2 dB max; 1–125 MHz: −0.2 − 0.002·f^1.4 dB max |
| Return Loss (Z OUT = 100 OHM ±15%) | 0.1–40 MHz: −16 dB min; 40–100 MHz: −10 + 20·LOG10(f/80 MHz) dB min |
| Inductance (OCL), Media Side | 350 µH min |
| OCL Test Condition | 100 kHz, 100 mVrms, with 8 mA DC bias |
| Crosstalk, Adjacent Channels | 1 MHz: −50 dB min; 10–100 MHz: −55 + 22·LOG10(f/10) dB min |
| Common Mode Rejection Ratio | 2 MHz: −50 dB min; 30–200 MHz: −15 + 20·LOG10(f/200) dB min |
| Input-Output Isolation | 1500 VRMS min @ 60 seconds |
The HX5084NLT is engineered for high-volume manufacturing and long-term reliability.
The HX5084NLT is a strong fit for Ethernet-enabled systems that need compact, reliable, and industrial-grade magnetics.
Common applications include:
For product engineers and procurement teams, the HX5084NLT stands out because it combines standardized 1000Base-T compatibility with industrial temperature endurance and SMT assembly convenience. That makes it especially useful in designs where board space is limited but reliability cannot be compromised.
Its strong return loss, crosstalk, and common mode rejection performance help support clean signal transmission, while the 1500 VRMS isolation rating adds an extra layer of protection for system integration.
Yes. The HX5084NLT is designed for 1000Base-T Gigabit Ethernet applications and meets IEEE 802.3 specifications.
The operating temperature range is −40°C to +85°C, making it suitable for industrial and wide-temperature environments.
Yes. It is a surface-mount (SMT) LAN transformer, which supports automated PCB assembly and compact layouts.
Yes. The HX5084NLT is RoHS compliant.
The input-output isolation is 1500 VRMS minimum for 60 seconds.
