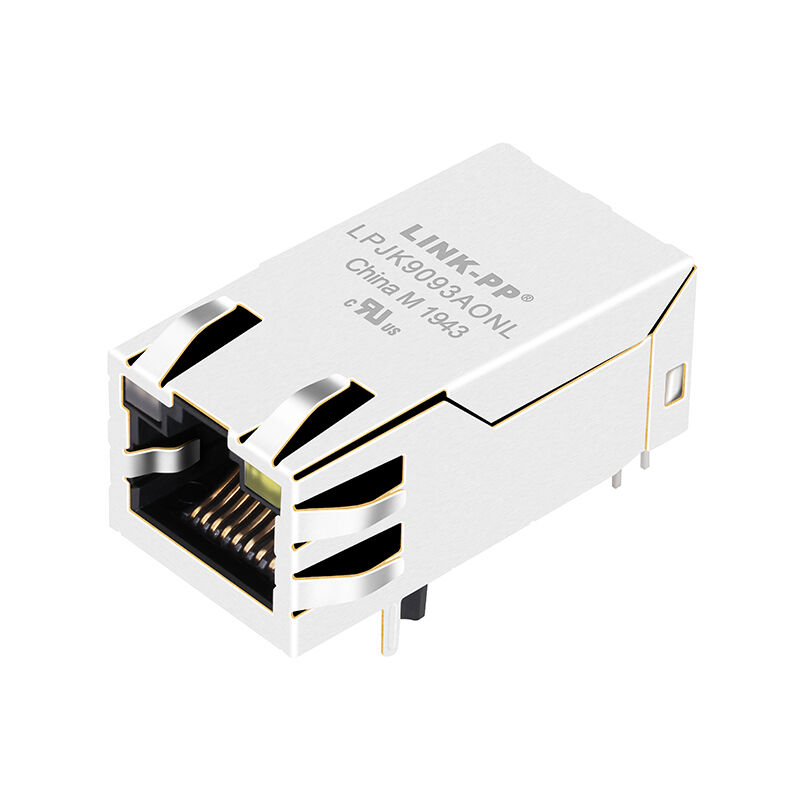

LPJK9093AONL PoE++ RJ45 Connector with 10GBase-T Magnetics

LPJK9093AONL is a 10G Base-T PoE++ RJ45 connector with integrated magnetics, 1x1 port, side entry through-hole design, 802.3bt support, 180µH OCL, and Orange & Green/Yellow LED indicators for high-power Ethernet applications.

Specifications of LPJK9093AONL PoE++ RJ45 Connector

LPJK9093AONL PoE++ RJ45 Connector Datasheet

1. LPJK9093AONL Drawing- Schematic

2. LPJK9093AONL Drawing - Mechanical

3. LPJK9093AONL Drawing - Suggested PCB Layout

Key Features of LPJK9093AONL10G PoE MagJack

The LINK-PP LPJK9093AONL is a premium, active-status 10G Base-T RJ45 connector engineered to meet the extreme demands of modern high-speed, high-power networking. Featuring integrated magnetics and robust PoE++ (IEEE 802.3bt) capabilities, this 1x1 port through-hole jack safely delivers up to 1.0A continuous current at 57VDC.

Designed with a side-entry (90° right angle) configuration, "Latch Up" orientation, and integrated EMI shield tabs, the LPJK9093AONL is the ultimate solution for LAN-on-Motherboard (LOM), SOHO modems, enterprise switches, and next-generation telecom equipment requiring flawless 10 Gigabit Ethernet performance.

• 10G Gigabit Speed: Fully optimized for 10GBASE-T Ethernet applications with exceptional EMI suppression and signal integrity.
• High-Power PoE++ Ready: Compliant with IEEE 802.3bt, supporting 4-pair Power over Ethernet up to 1.0A @ 57VDC continuous.
• Advanced Internal Circuitry: Built-in BST circuit and full **AutoMDIX** support for automated crossover detection.
• Superior Durability: Features a UL 94V-0 rated thermoplastic housing and customizable Gold-plated contacts (6µ" standard, 15µ"/30µ" options available) for maximum mating cycles.
• Integrated Visual Diagnostics: Distinctive Orange & Green (Bi-color) / Yellow (Single-color) LED configuration for real-time network status monitoring.
• Certified Quality: UL Certified (File Number E484635) and fully RoHS (2011/65/EC) compliant.

Mechanical Design Advantages

The LPJK9093AONL PoE++ RJ45 connector’s side-entry right-angle structure supports compact board layouts and efficient front-panel integration. The latch-up orientation simplifies insertion and retention in networking products, while the EMI shield tabs improve immunity in noisy electrical environments.

Mechanical Highlights

• Compact 32.50 mm × 16.60 mm × 13.50 mm footprint
• Through-hole mounting for strong mechanical retention
• Suitable for side-entry PCB layouts
• Designed for stable performance in 10G Base-T applications
• Built-in shielding support for improved EMC behavior

Typical Applications

The LPJK9093AONL PoE++ RJ45 connector is commonly used in:

• 10G Ethernet switches
• Routers and gateways
• SOHO networking equipment
• LAN-on-Motherboard designs
• Access points
• PoE-powered surveillance systems
• Industrial networking devices
• Hubs and communication modules

Frequently Asked Questions About PoE++ Magjack

1. What is the LPJK9093AONL used for?

LPJK9093AONL is a 10G Base-T RJ45 connector with integrated magnetics designed for PoE++ Ethernet applications such as switches, routers, access points, and SOHO networking devices.

2. Does LPJK9093AONL support PoE++?

Yes. It supports IEEE 802.3bt PoE++ with up to 1.0A maximum continuous current at 57VDC.

3. Is LPJK9093AONL suitable for 10G Ethernet?

Yes. It is designed for 10G Base-T high-speed Ethernet transmission.

4. What type of mounting does LPJK9093AONL use?

It uses a through-hole, side-entry, right-angle mounting style.

5. Does LPJK9093AONL include LED indicators?

Yes. It includes an Orange/Green bi-color LED and a Yellow LED for status indication.
